Colour in telecommunications ducting serves a practical purpose beyond appearance: it helps installation teams distinguish routes, identify network operators, and reduce confusion when multiple ducts occupy the same trench or access chamber. For HDPE duct manufacturers, maintaining a uniform shade throughout the pipe wall requires more than adding pigment to the resin.
Colour masterbatch can be dispersed into molten polyethylene via co-rotating twin screw extruders. Additive concentration, mixing conditions, and compatibility of the masterbatch carrier with the base polymer govern the final outcome. DEKUMA operates in the extrusion machinery sector, where process monitoring and repeatable material handling are relevant to consistent production.
Masterbatch Loading Rate and HDPE Compatibility
Colour masterbatch consists of concentrated pigments or dyes dispersed in a carrier resin, often with additives that support processing and dispersion. During duct production, a measured quantity of masterbatch is blended with natural HDPE to achieve the required colour. The loading rate depends on pigment concentration, target shade, base-resin properties, and the masterbatch supplier’s recommendations. Increasing the dosage does not necessarily improve colour quality; excessive loading can increase costs and may influence mechanical or processing properties.
Carrier compatibility is an important part of formulation selection. A polyethylene-based masterbatch is generally designed to blend with polyethylene materials, but the specific carrier grade and additive package still matter. Differences in melt behavior between the carrier and the HDPE can affect how readily the colour spreads through the polymer. Manufacturers should verify that the selected masterbatch is suitable for the duct compound and that the intended dosage delivers the required shade without compromising relevant product specifications.
Accurate dosing helps prevent visible variation between production runs. Gravimetric feeders measure material by weight and can provide more consistent proportions than systems relying only on volumetric delivery, particularly when bulk density changes. A twin screw extruder can then mix the measured ingredients as the polymer moves through the barrel. Stable feed rates, appropriate screw geometry, and controlled melt temperatures help maintain colour distribution while limiting unnecessary thermal exposure.
Dispersion Quality Across the Pipe Wall
Uniform colour depends on how effectively pigment particles are distributed through the molten polymer. Poor dispersion may create streaks, specks, or uneven shading that remain visible on the finished duct surface. Some defects originate from pigment agglomerates that have not been adequately broken down; others arise from inconsistent feeding, unstable process temperatures, or inadequate mixing time. Identifying the source matters because changing the masterbatch dosage will not necessarily correct a dispersion problem.
Mixing must balance pigment distribution with polymer protection. Dispersive mixing can break down agglomerates, while distributive mixing spreads the pigment-rich material throughout the melt. A co-rotating twin screw extruder can be configured to provide these mixing actions, but the outcome depends on screw-element design, rotational speed, throughput, and residence time. Excessive shear or heat can degrade the polymer, while insufficient mixing may leave the pigment unevenly distributed. The operating window should be established through trials using the actual HDPE and masterbatch formulation.
Colour consistency also needs to be considered through the pipe wall, not only at the outer surface. Depending on the product design, a duct may use a uniformly coloured compound or a coloured outer layer over a different base material. These constructions have different material and process requirements. In a uniformly coloured duct, pigment distribution through the compound is particularly important; in a layered design, layer thickness and the stability of the co-extrusion process also affect the final appearance. Sampling should reflect the intended construction rather than assuming that a visually uniform surface proves uniformity throughout the wall.
Colour Verification and Network Identification
Telecommunications projects may specify colours to distinguish duct routes, operators, or service types. Such coding practices can vary by operator, project, and regional specification, so manufacturers should work from the applicable technical documents rather than assume one universal colour system. The finished duct must remain identifiable after storage, transport, installation, and exposure to the environmental conditions expected in service.
Visual inspection is useful for detecting streaks, specks, and obvious shade differences, but human judgement alone can be inconsistent under different lighting conditions. Instrumental colour measurement, using a suitable colour space and agreed reference sample, provides a more repeatable way to compare production batches. Measurements should use consistent sample preparation, lighting conditions, and instrument settings. Acceptance limits need to be defined by the product specification or customer requirements.

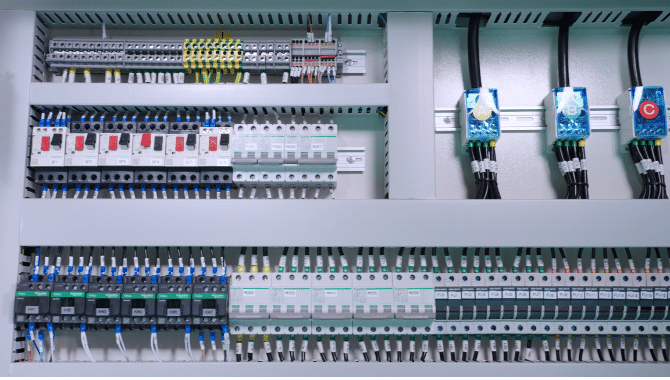

Production traceability connects colour results with process conditions. Records of masterbatch lot, loading rate, feeder performance, temperature settings, screw speed, and production time can help identify why one batch differs from another. DEKUMA describes an independently developed control system based on Siemens PLC and PROFINET communication for real-time data exchange and production monitoring. These capabilities can support traceability in compatible extrusion-line configurations, although their availability and integration should be confirmed for the specific equipment selected.
Conclusion
Reliable colour coding in HDPE telecommunications ducts depends on the combined control of formulation, pigment dispersion, and verification. Correct masterbatch loading establishes the intended shade, while compatible materials and stable mixing conditions help maintain consistency throughout the pipe wall.
Within this production process, twin screw extruders are viable when configured to match the compound and desired output, but finished ducts still need objective colour inspection aligned with relevant specifications. With its extrusion machinery and process-control capabilities, DEKUMA provides a relevant industrial reference, while the final requirements remain specific to the duct construction, colour system, and network operator.
